Martin Industries Pellet Stove Support

   Assembled Products provides replacement and repair service for Martin Pellet Stove Control Panels. Before Martin went out of business, we engineered and produced the original control boards. This product was discontinued by our customer who has authorized us to continue to provide support for all models of the Martin pellet stoves. Currently we have two service options available, repair or replacement of the control board.




To Order, Select from the Following Two Options:

The digital upgrade was designed as a direct replacement for the OEM circuit board used in the Martin Pellet Stoves. Digital Feed Rate ranges from 0(off) to (9)Fastet. Installation and Wire Hook-up are identical.


Buy Now for U.S. Orders Only
International Clients please call to order

Replacement control boards for the
Martin Pellet Stove: $296.78 plus shipping
or Click here for
Flat Rate REPAIR of your Martin Pellet Stove
control boards: $185 plus shipping





The OEM circuit board for the Martin Industries Pellet Stove was upgraded by our reduced component control board and later by our digital version. The new digital board can also operate safely on modified sine wave inverters.

Click here to download copy of the original Service Manual:
Download Install Manual

AUGER MOTORS ARE NOW AVAILABLE!!!!

Now available, Auger Motors in 1, 4 & 6 RPM versions. These are new, not re-conditioned motors and are a direct replacement for the OEM style motor in Martin pellet stoves. $195/each - Call or e-mail for details.






Motor Speed

Buy Now for U.S. orders only
International Clients please call to order

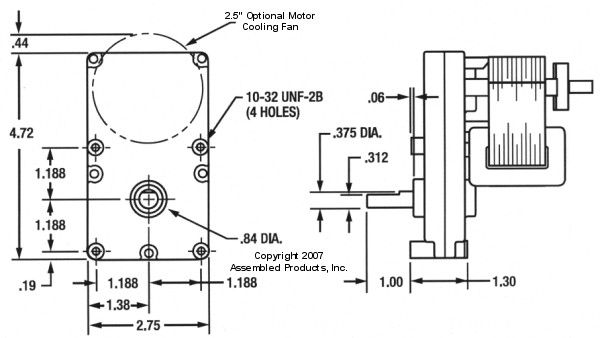

Mechanical specifications for Auger motor used in the Martin Pellet Stove.
We have found that this motor is compatible with several different style of pellet stoves.
Please call if you have questions!










Room Fan / Convection Fan for Martin Pellet Stoves

Fasco Brand Convection / Blower Fans are direct replacement units for most
Martin Pellet Stoves. Rated at 160 CFM,1600 RPM at 115 volts/60hz.
$189.00
/each - Call or e-mail for details

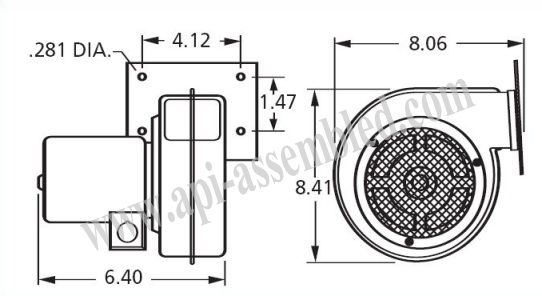

Mechanical specifications for this Martin Pellet Stove Blower Motor. We have
found that this motor is compatible with several different style of pellet stoves.
Please call if you have questions!



Auger Bearing for Martin Pellet Stoves

Cast Iron Bearing utilizes a Silicon seal for Long life and has a grease fitting for easy maintenance,
 temperature rated for -10° to 400°F. This bearing is a direct replacement for most
Martin Pellet Stoves but does require mechanical skills to replace.
$52.28
/each or send us your old bearing assembly and we will replace it for $35 extra
Call or e-mail for details

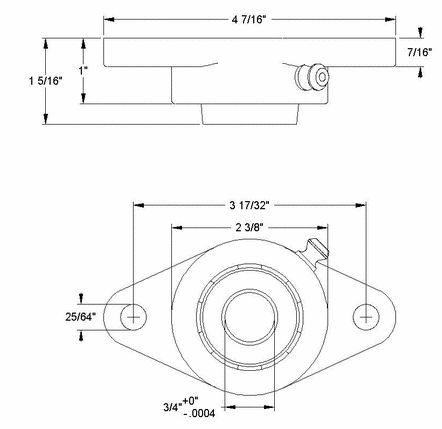

Mechanical specifications for this Martin Pellet Stove Auger Bearing
Please call if you have questions!
